Commercial Buildings
Power distribution for offices, hotels and commercial developments.

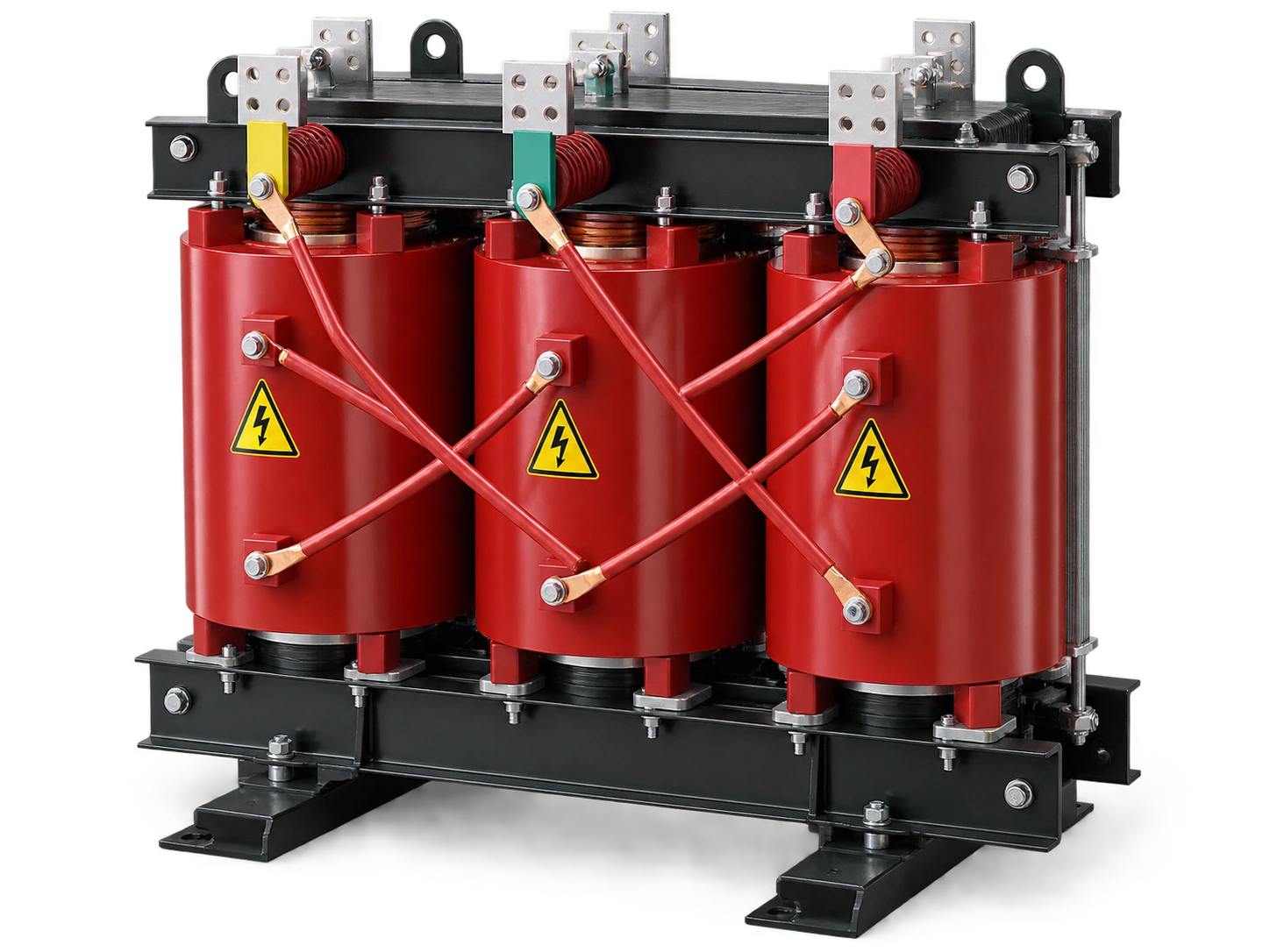

Dry-Type Transformer
Reliable Dry-Type
Transformers for the GCC
Oil-free cast resin solutions for commercial, industrial and data-center projects. Technical selection and project support across the GCC.
Oil-Free InsulationLow-Maintenance OptionsProject-Specific Design
Built for GCC Heat
High ambient-temperature configurations, subject to technical confirmation.
Custom Enclosure Protection
Enclosure materials and IP protection matched to the operating environment.
Fast Production Coordination
Efficient technical clarification and production coordination for time-sensitive projects.
Priority Scheduling
May be coordinated for qualified urgent projects, subject to factory confirmation.
Factory-Backed Pricing
Project-based pricing sourced through qualified manufacturing partners.
Project-Specific Customization
Voltage, capacity, accessories, losses and protection matched to your specification.
Test Reports & Technical Documentation
Selected examples of test reports and technical documentation from our manufacturing partners.
Sample reports shown for reference only. These are selected examples and do not represent all available test reports. Applicable documentation depends on the transformer model, specification and manufacturing partner. Full relevant documentation can be provided upon request.
Typical Applications
Industrial Facilities
Transformer selection for manufacturing and industrial distribution.

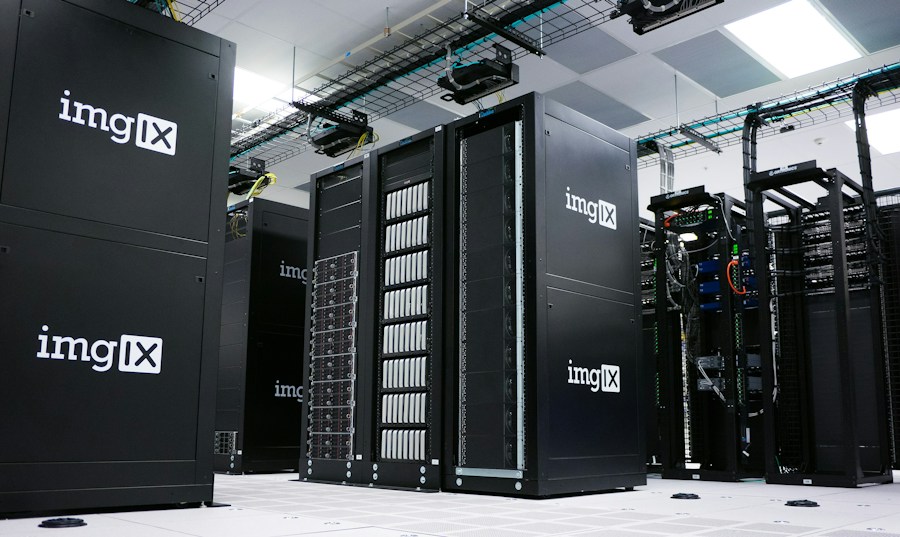

Data Centers
Project-specific supply for critical power infrastructure.
Technical Range & Project Review
SC(B) series cast resin dry-type transformer options. The supplied brochure includes 20 kV and 35 kV family tables; the final offered design is confirmed against the project specification.
- Capacity reference
- 50–2500 kVA; final rating subject to design
- HV / LV voltage
- Project-specific; typical catalogue LV 0.4 kV
- Frequency
- 50 Hz catalogue reference; confirm project frequency
- Insulation class
- F / H options, subject to selected design
- Vector group
- Dyn11 / project-specific
- Review requirements
- Impedance, losses, partial discharge, temperature rise and enclosure
Higher ambient temperatures, dust, humidity, installation conditions and local authority requirements require configuration-specific engineering review. Catalogue values are reference information, not a guarantee for every offered model.
Send your specification for technical confirmation →Reliable Power for a Growing GCC
From high ambient temperatures and dust to indoor or outdoor installation, we coordinate dry-type configurations around your actual operating conditions and project schedule.
